High-voltage wiring harnesses, due to their larger wire diameter and limited flexibility, require extremely precise dimensional control during vehicle assembly. All components on the harness – including brackets, metal supports, retaining clips, and aluminum tubes – must be secured in strict accordance with the vehicle installation specifications.

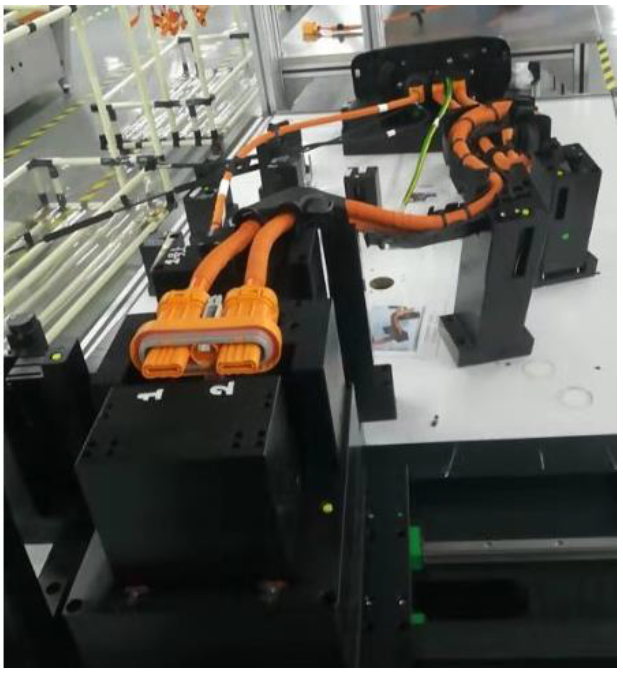

The 3D tooling station simulates the actual vehicle installation state for pre-assembly verification.
